Wholesaler Thermal Conductive Telecommunication Hardware Thermally Conductive Pads For LED

Wholesaler Thermal Conductive Telecommunication Hardware Thermally Conductive Pads For LED

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

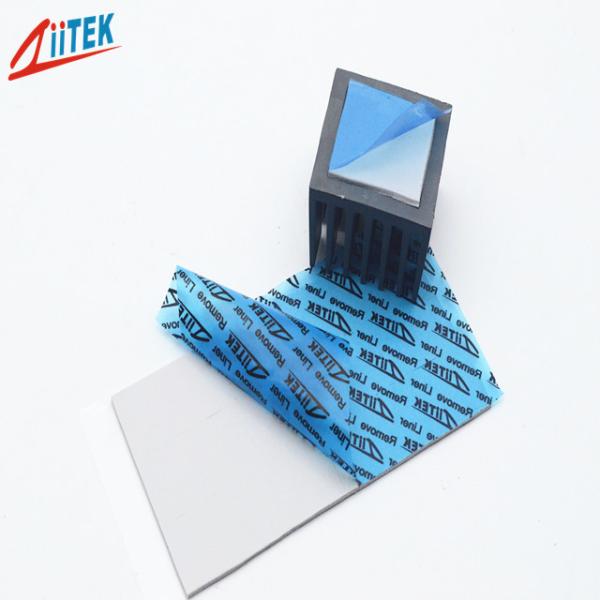

The TIF™180-02F Series tis a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features

> High tack surface reduces contact resistance
> RoHS compliant 1.5 W/mK
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
> Electrically isolating
> High durability

Applications

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Standard Thicknesses:
0.010" (0.25mm), 0.020" (0.51mm), 0.030" (0.76mm), 0.040" (1.02mm),

0.050" (1.27mm), 0.060" (1.52mm), 0.070" (1.78mm), 0.080" (2.03mm),

0.090" (2.29mm), 0.100" (2.54mm), 0.110" (2.79mm), 0.120" (3.05mm),

0.130" (3.30mm), 0.140" (3.56mm), 0.150" (3.81mm), 0.160" (4.06mm),

0.170" (4.32mm), 0.180" (4.57mm), 0.190" (4.83mm), 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
